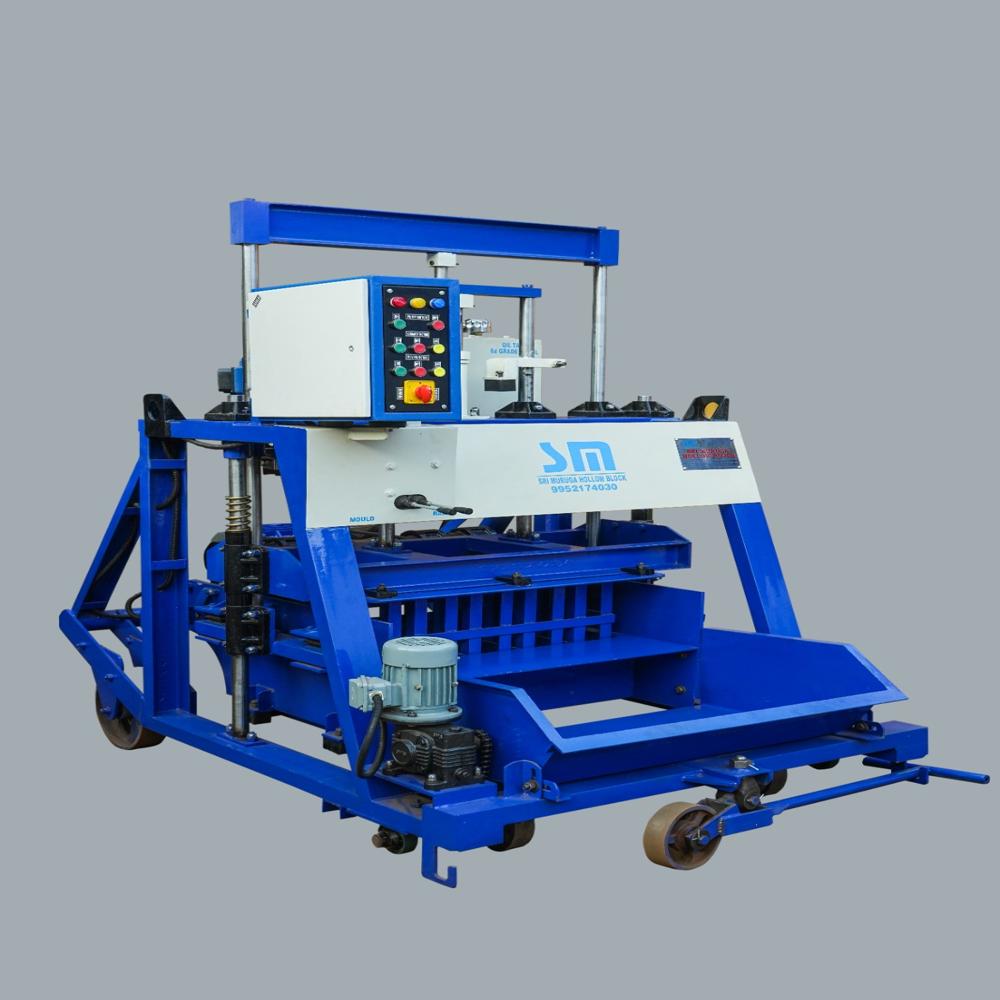

Hollow Block Machine 860 Model

Hollow Block Machine 860 Model Specification

Product Type
Hollow Block Machine

General Use
Construction, Block Manufacturing

Method
Hydraulic Pressure & Vibration

Processing
Brick Production

Automatic
Semi Automatic

Power
6.5 HP (Electric Motor)

Voltage
440 V

Capacity
400-500 blocks/hour

Weight (kg)
1800

Brick Raw Material
Cement, Stone Dust, Fly Ash, Sand, Aggregates

Type
Hydraulic Concrete Block Making Machine

Dimension (L*W*H)
2000 mm x 1500 mm x 1750 mm

Color
Blue/Yellow

Oil Tank Capacity
180 Litres

Noise Level
Low

Machine Frame Material
Heavy Duty MS Steel

Maximum Vibrator Force
4200 kg

Service Support
On-site installation and training

Pallet Size
900 mm x 550 mm x 25 mm

Material Feeding Type
Manual

Block Type Support
Hollow, Solid, Fly Ash Bricks

Motor Make
Standard Copper Winding

Mould Changing Feature
Available

Operator Required
1-2 Persons

Cycle Time
18-25 seconds

Hollow Block Machine 860 Model Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

About Hollow Block Machine 860 Model

Product Details:

Minimum Order Quantity	1 Piece
Usage/Application	Brick Making
Material	Mild Steel
Power	6.5
Surface Finishing	Coated
Features	Highly Efficient
Country of Origin	Made in India
Automation Grade	Semi Automatic
Block Type	Solid

Specifications:
ModelSM-860 Hydraulic Solid Block Machine

Power 5 HP Three Phase

MotorHydraulic Pump Motor :3 HP 1440 RPM

Three PhaseVibrator Motor1.5 HP 2880 RPM

Three PhaseTravel Motor0.5HP 1440 RPM

Three PhaseOperating Pressure140Kg/cm2

Vibrations6000HZ Amplitude+91 98426 29582

AdjustableMolding

Area860 x 600 MMDimension2000x 1500 x 2000 MMProduction Capacity4 Block 4 Block / Stroke / 2000/Shift6 Block 3 Block / Stroke / 1600/Shift8 Block 2 Block / Stroke /1100/Shift

Durable Construction and Versatility

Manufactured using heavy-duty MS steel, the Hollow Block Machine 860 Model ensures long-term durability even in demanding environments. The adaptable mould system enables the easy production of various block types, including hollow, solid, and fly ash bricks, meeting diverse project requirements. Its semi-automatic operation reduces manual effort while maintaining high output rates.

Advanced Hydraulic Performance

Leveraging hydraulic pressure combined with vibration, the machine delivers a maximum vibrator force of 4200 kg. This advanced method ensures consistent compaction and optimal strength in every block produced. With a cycle time of just 18-25 seconds and a large oil tank capacity, it guarantees sustained high performance under continuous use.

FAQ's of Hollow Block Machine 860 Model:

Q: How does the mould changing feature benefit production with the Hollow Block Machine 860 Model?

A: The mould changing system allows operators to quickly switch between different block types, such as hollow, solid, and fly ash bricks. This flexibility enables efficient production runs and adapts to varied construction needs without significant downtime.

Q: What raw materials are compatible with this machine, and how are they fed into the system?

A: This machine supports cement, stone dust, fly ash, sand, and aggregates as brick raw materials. Material feeding is done manually, ensuring precise measurement and mixing before each cycle for optimal block quality.

Q: When is on-site installation and operator training provided?

A: On-site installation and comprehensive operator training are included with every purchase. These services are scheduled promptly after delivery to ensure the machine is correctly set up and staff are fully prepared for operation.

Q: Where can the Hollow Block Machine 860 Model be used most effectively?

A: This model is ideal for construction sites and manufacturing units that require consistent block production. Its portability and robust frame make it suitable for both urban and rural locations throughout India.

Q: What is the block production process with this machine?

A: The process involves manual loading of materials, followed by the application of hydraulic pressure and vibration to compact the mix into the desired mould. Each cycle takes approximately 18-25 seconds, enabling rapid production of high-quality blocks.

Q: How many operators are required to run this machine efficiently?

A: The 860 Model is designed for efficiency and requires only 1-2 operators for smooth operation, making it suitable for both small teams and larger production settings.

Q: What are the primary benefits of using the Hollow Block Machine 860 Model for construction?

A: Key benefits include high production capacity, structural durability, mould versatility, low noise operation, and energy-efficient performance. These features contribute to cost-effective, reliable block manufacturing for construction projects.
